RL-HV1S Self-Leveling Single Grade Laser DB Kit

SINGLE SLOPE, LONG RANGE, SELF-LEVELING LASER

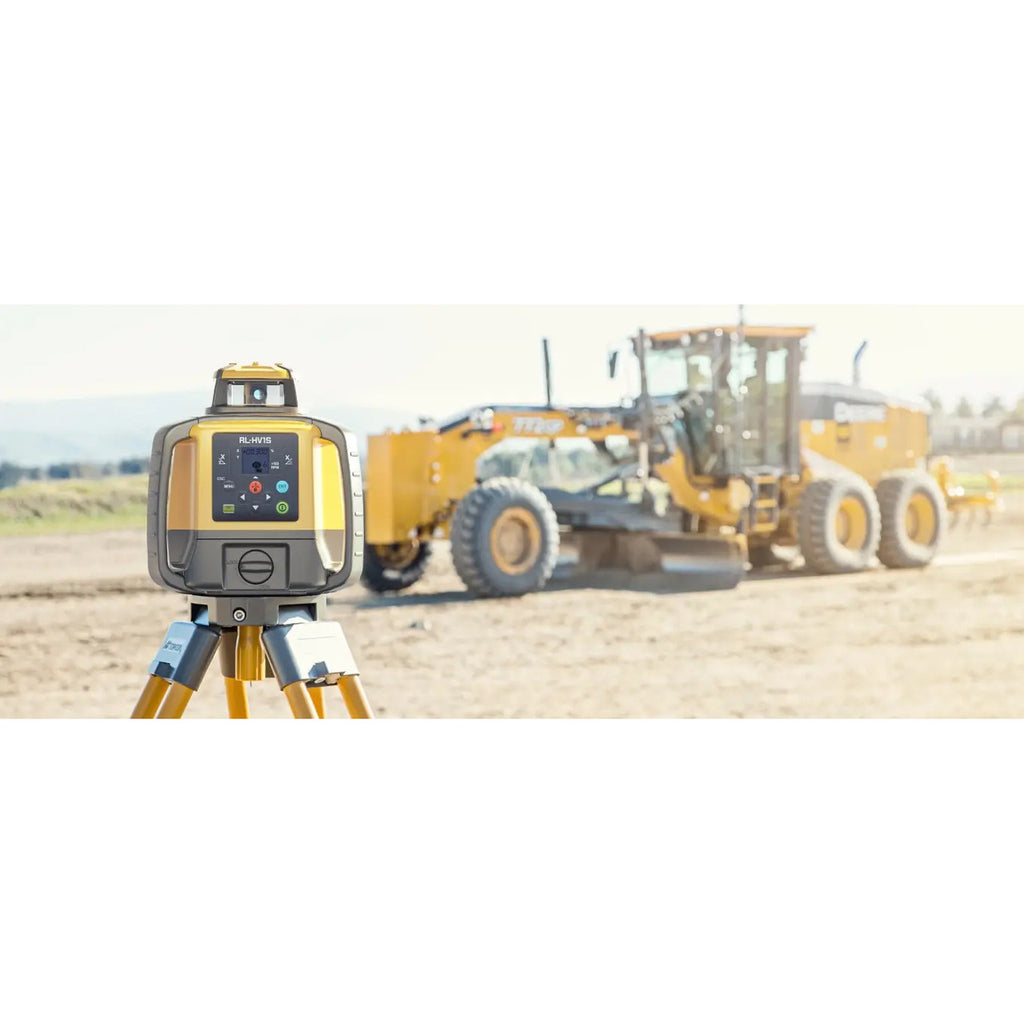

The Topcon RL-HV1S Single Grade Laser is an economical and user-friendly laser that is built for single slope and layout applications. With a working range up to 2,600 feet, this laser is ideal for land surveying, geospatial monitoring, civil engineering works and other site works. The RL-HV1S offers an accuracy of ±10 arc seconds and a single grade range of ±5 percent.

Self-leveling within ±5 degrees horizontally, the Topcon RL-HV1S is designed for different indoor and outdoor tasks. Also, it features two rotational speeds of 300 and 400 rotations per minute. To provide more accuracy, it includes an RC-50 remote control.

This Topcon single grade laser features an IP66 rating which protects the instrument from dust and water. Built for long hours of work, it uses powerful batteries that operate up to 120 hours. In addition, it features an operating temperature of -4 °F to 122 °F which is built to work perfectly even under extreme temperatures.

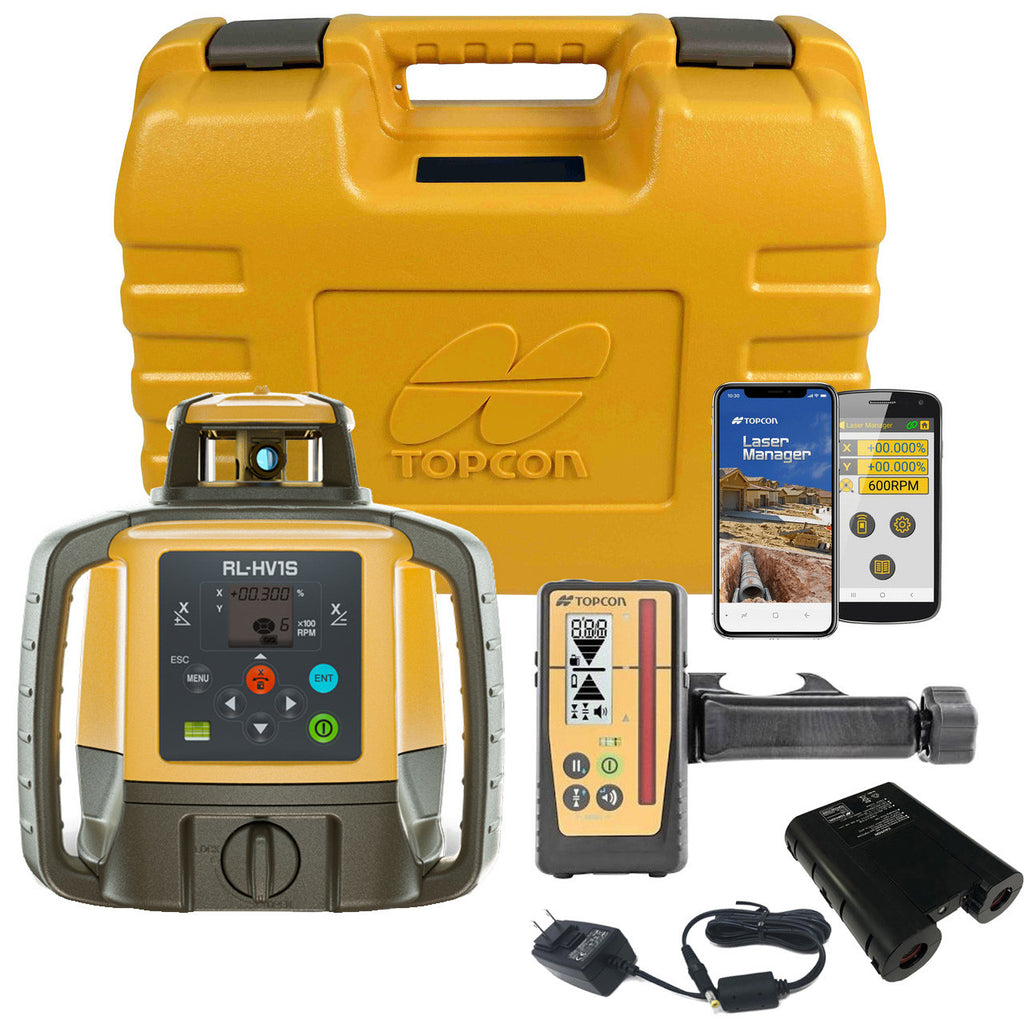

Key Components
• RL-HV1S laser
• Laser manager app
• Works with LS-100 and
LS-80 series laser receiver
• Bluetooth
• Sensor holder
• Batteries and charger
• Carry case

Topcon RL-HV1S TOP FEATURES

• Self-Leveling Laser with Single Slope

• Rugged, Lightweight and Compact
• Long Range Operation up to 2,600 ft diameter
• High Horizontal Accuracy 1/16-inch @ 100-feet
• Accuracy of ± 10 arc seconds
• Simple and intuitive Single Slope or Flat Work

• Rotation Speeds: 300 rpm or 600 rpm
• Tough IP66 Rating - Dust and Water Rating
• Horizontal Self-Leveling Range ± 5 degrees
• Long battery life - up to 120 hours Alkaline

• Out of Level Notification
